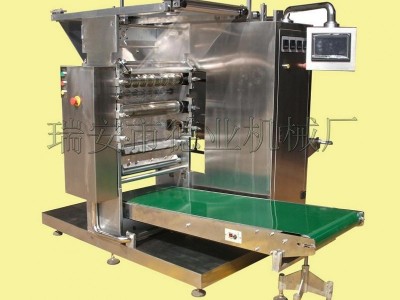

四邊封包裝機｜全自動四邊封液體包裝機（袋裝洗發水包裝設備）

液體包裝機用途：該機適用于醫藥，食品，日化等行業中的液體物料并有計量要求的中小袋四邊封包裝，如洗發水，棒棒冰，酒，醬油，醋，醫藥劑水，化工水劑等。

Usage: Machine is suitable for packing liquid material in the medicine, food, and daily chemical industries, and automatic packing into sachets with measuring requirement. Such as shampoo, ice lolly, wine, soy sauce, vinegar, medicine water, chemical agent water and so on.

液體包裝機特點：

1.       性能先進，強度高，噪聲低，結構緊湊，運行平穩，使用壽命長。放膜機械可成水平90°旋轉并增設了接膜機械，使換接膜與維修更加方便。

2.       采用五伺服同步驅動，人機界面上觸摸調整，通過PLC控制，使各執行機構能精確自動同步定位。

3.       自動化程度高，本機從縱封，縱切，橫封，充填裝料，打碼，切易撕口，切虛線，橫切，直至成品袋輸出能一次性完成。

4.       采用高精度整體碾壓式熱封輥，作為封合模具。四邊封口，多列袋形式。包裝速度快，且袋形平整，精致美觀，包裝效率高。

5.       調整快捷方便，不需要更換模具就可以進行袋長無級調整。且縱封，橫封，充填料，打批號，切虛線，橫切等執行機構均可通過人機界面進行調整。

6.       灌裝計量精確，針對液體物料專門配以離心式液體泵加料，計量控制采用高精度電磁閥，每閥配有瞬間大流量穩壓裝置，使每列袋都能獨立方便地進行精細準確計量調整。

7.       采用光電跟蹤系統，保證了包裝袋雙面圖案自動對版，并具有自動計數功能。

8.       本機型特增設了行膜自動糾偏與行膜阻尼機構，保證行膜的直線度與張緊度的穩定性，從而大大提高了袋形的平整與美觀程度。

9.       對包材適應性強，本機封合溫度具有自動控制功能，且控制精度高（±1℃左右）?？蛇m應國內外生產的多種包裝薄膜，如PET/AL/PE, PET/PE, NY/ALPE, NY/PE等。

10.   可適當增設附加功能，如袋切斷可選配虛刀，平刀，甚至異型刀，及選配各種報警要求等。

Characteristic:

1.       Advanced performance, high power, low noise, compact structure, operate steadily, easy to maintain, and has a long life span. Film sending mechanism can rotate with 90°in level, and add with film contacting mechanism, which make film change and maintain easier.

2.       Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.

3.       A high degree of automation, machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting dotted line cutting, and transverse cutting to outputting finished sachets.

4.       High precision whole rolling type heat sealing rollers are adopted as sealing mould, four side sealing, and multi-lane sachet form. With high packing speed, smooth bag shape, delicate and beautiful, packing and high efficiency.

5.       Easy and fast to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting, and transverse cutting through man-machine interface.

6.       Accurate in measurement. Regarding to liquid material, specially designed of centrifugal liquid pump of feeding, measuring control adopt high precise electro-magnetic valve, each valve match with voltage regular, each line’s dosage can be adjusted easily and accurately.

7.       Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.

8.       The machine with film automatic correction and film damping mechanism, to ensure the straightness and tension stability of film, and make the pouch more smooth and beautiful.

9.       Adaptability of the package film, the sealing temperature of machine is with automatic control, and has high control accuracy(±1℃). Suitable for most complex film packing film: such as PET/AL/PE, PET/PE, NY/ALPE, NY/PE and so on.

10.   Extra functions set up, for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc, and can choose different kinds of alarm requirement.

液體包裝機主要技術參數：
