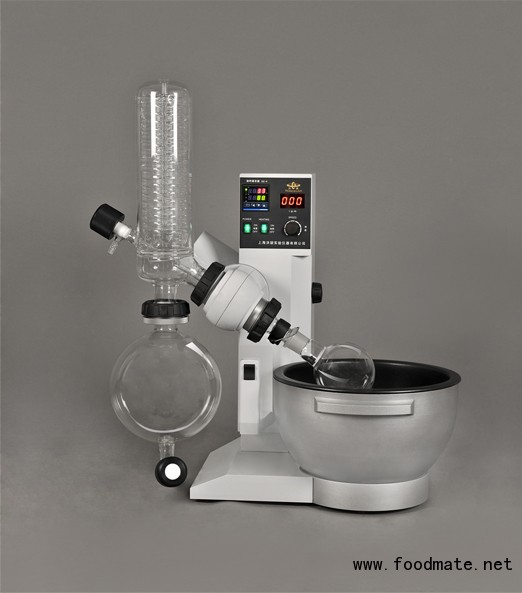

XZ-旋轉蒸發儀

技 術 參 數

         性能轉數：轉數20-200轉/分
         溫度調節范圍：水溫，室溫-90度
         功能溫度 設置和顯示：數字顯示
         旋轉設定：旋鈕式
         燒瓶可使用的容量：0.25-5L
         升降器：蹺板式按鍵，電動升降，行程165mm
         構成主件：鋁合金構成主件
         電機：感應電機，輸出功率40W
         加熱鍋：鋁合金特氟龍，水浴和油浴兩用,全封閉加熱器
         冷卻器：立式，帶活塞的加料閥門，快速回收。
         試料燒瓶：圓型燒瓶5L
         回收燒瓶：帶閥門的燒瓶（3L）
         密封圈：PTFE復合材料+氟化橡膠雙重密封圈
         總功率 / 電 壓：1.8KW ～220v50Hz

technical specification:

         Performance:rotation speed: 20-200r/min.
         Temperature adjusting range: water temperature, indoor temperature -90 degree.  Functions:temperature set and display: digital display
         Rotation set:rotary button type
         Flask capacity:0.25-5L
         Lifting device:seasaw type push button, Electric lift，travel distance  165mm
         Constitution: Main parts：alluminium alloy
         Motor:induction motor, output power: 40W
         Heating device:alluminium alloy teflon,for water bath and oil bath ，all closed heater
         Cooling device:vertical type, with the piston material-putting valve,running operation,quick collection
         Test flask:round-shape flask (5L)
         Recovery flask:flask with valve (3L)
         Seal circle:PTFE composite + fluoro-elastomer dual seal circle
         Total Power/voltage:1.8KW    ～220v50Hz
