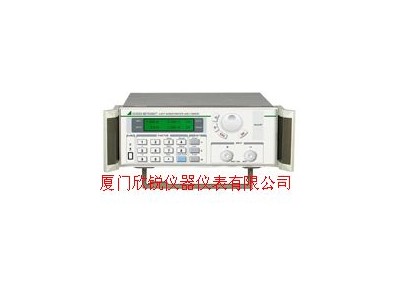

實驗室可編程電源LSP100-72

LSP 100-72程控電源是德國GMC生產的一款可編程電源,LSP 100-72程控電源良好的穩定性是德國產品的可靠見證,浚海儀器提供LSP 100-72程控電源專業的技術支持和完善的售后服務.

LSP Konstanter series 32K laboratory power supplies are high precision DC power supplies for use in R&D, production, service and training.
Three variants are available with approximately 100 W output power.
The devices feature excellent regulating accuracy and minimal residual ripple, and outstanding ease of operation.
Floating output
Safe electrical separation
Output can be switched on and off
Voltage and current regulating (square wave)
Rotary encoders for adjusting voltage and current
Adjustment is also possible with keys
Multifunctional LCD
Setup memory for 10 device settings
Protective functions
Attractive design, benchtop instrument, suitable for mounting to a 19" rack
Computer control with RS232 or RS485 via interface adapter possible



Short Name  LSP 100-18  LSP 100-36  LSP 100-72
Article No. K110A K111A K112A
Type 32K18R5 32K36R3 32K72R1.5
Front panel output 1 1 1
Output voltage 0 to 18 V 0 to 36 V 0 to 72 V
Output current 0 to 5 A 0 to 3 A 0 to 1.5 A
Voltage setting resolution

Current 1 mV at 0 ~ 3.999 V
5mV at 4~18V  10mV at 4~36V  20mV at 4~75V
< = 1 mA
Mains correction, voltage

Current 0.01% + 3 mV
0.02% + 10 mV
0.02% + 8 mA
Load correction, voltage
Current 0.02% + 10 mV
0.02% + 8 mA
Ripple < 2 mV RMS
Mains input 115 / 230 V AC
  50 / 60 Hz
Dimensions
WxHxD (mm)  ½ 19", 2 standard height units,
 approx. 215 x 100 x 280
Weight  approx. 6 kg
